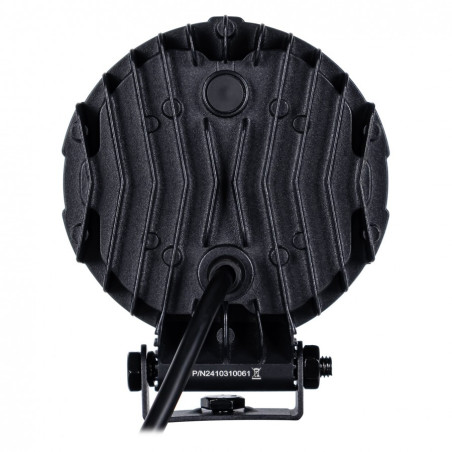

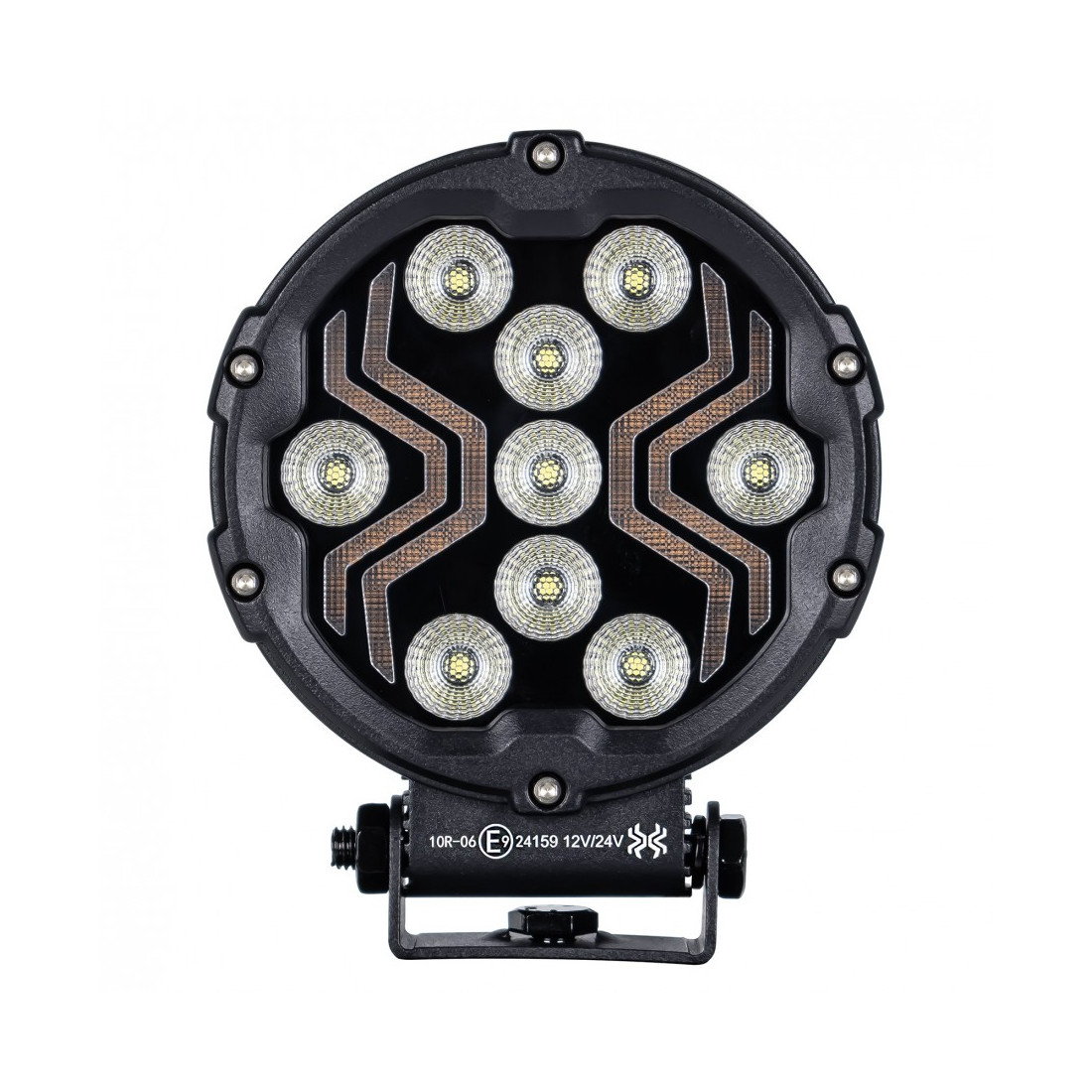

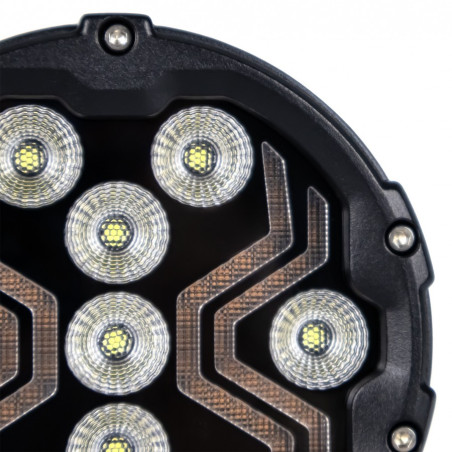

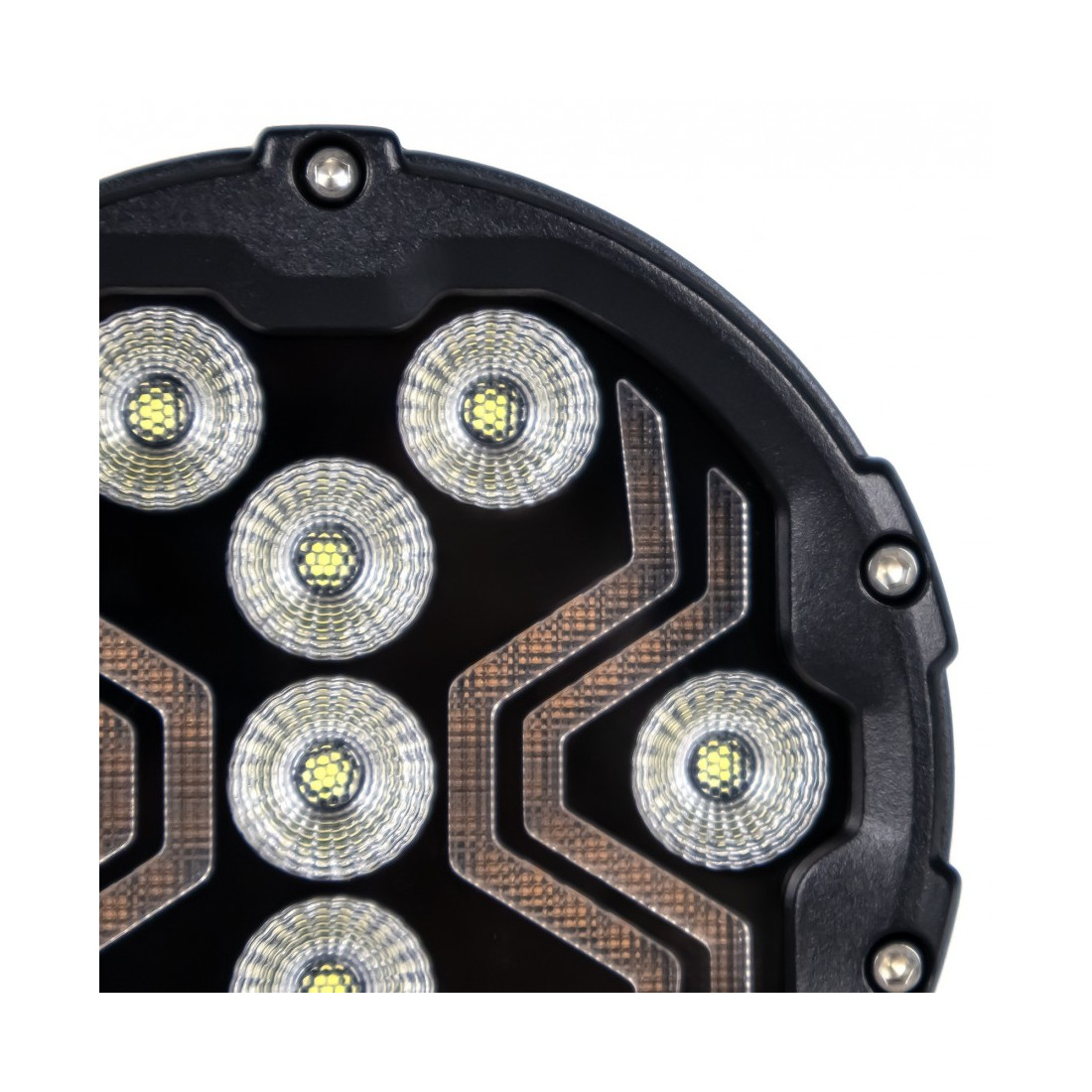

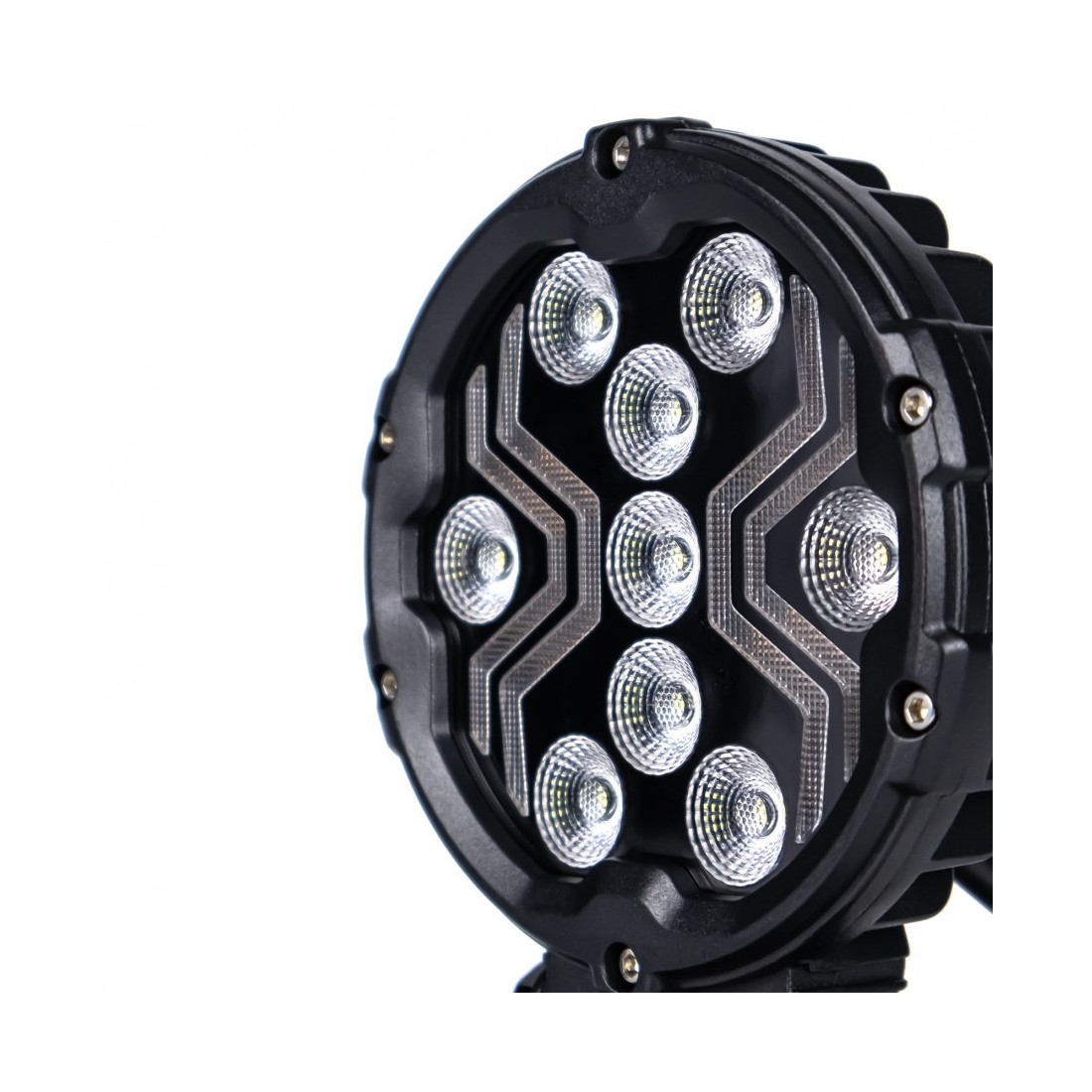

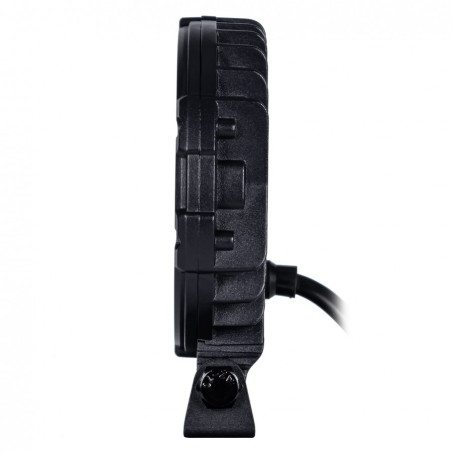

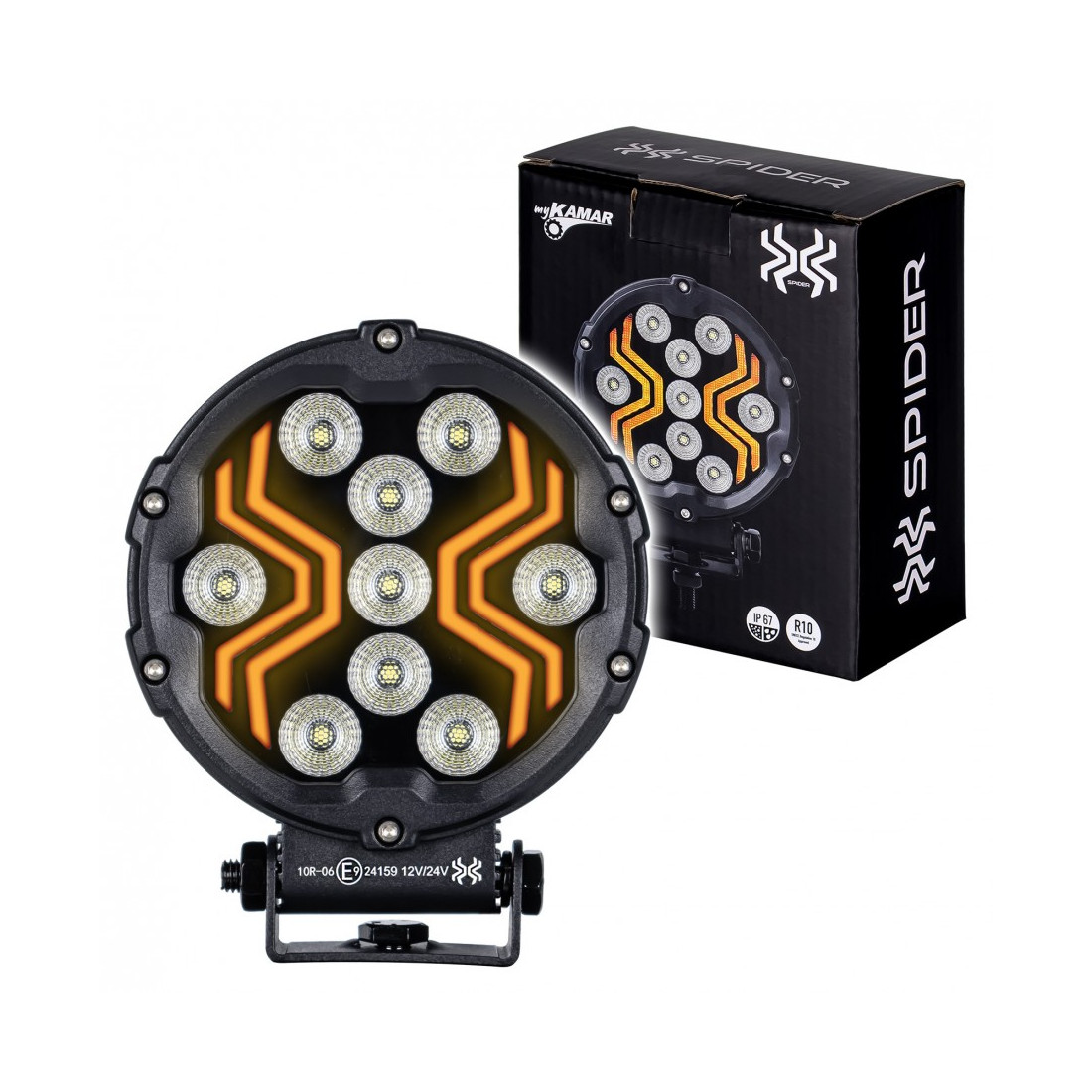

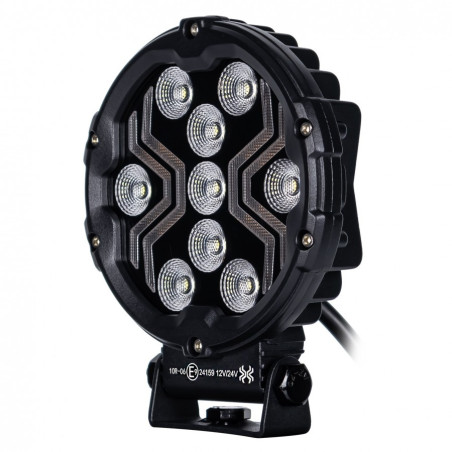

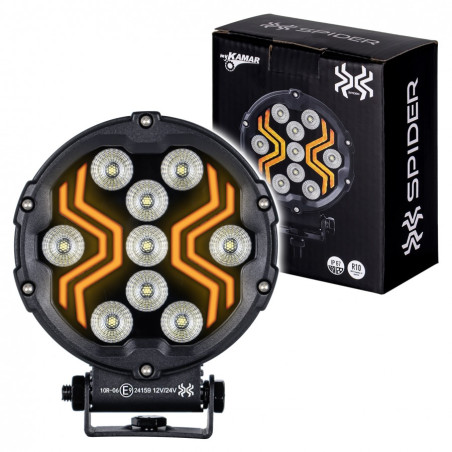

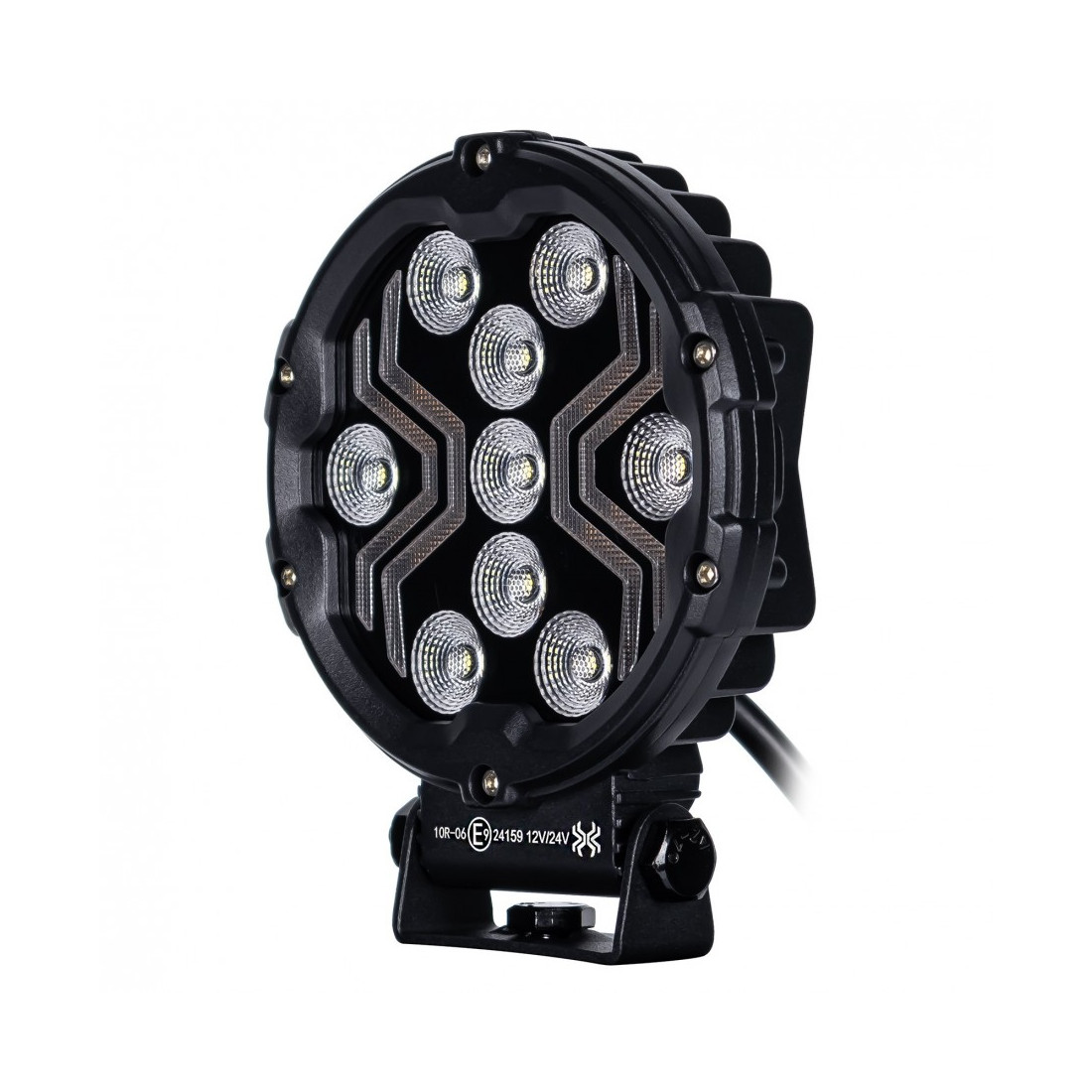

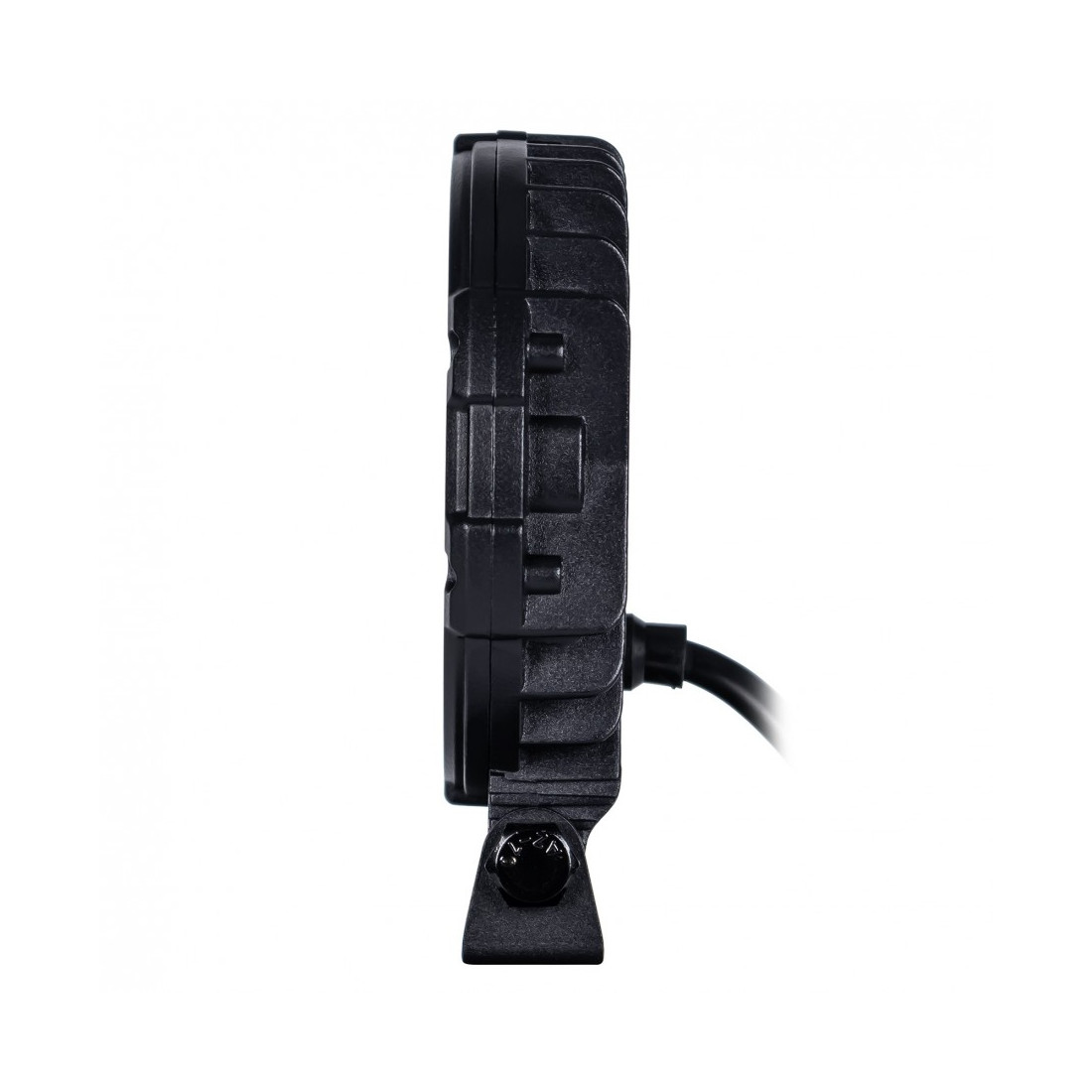

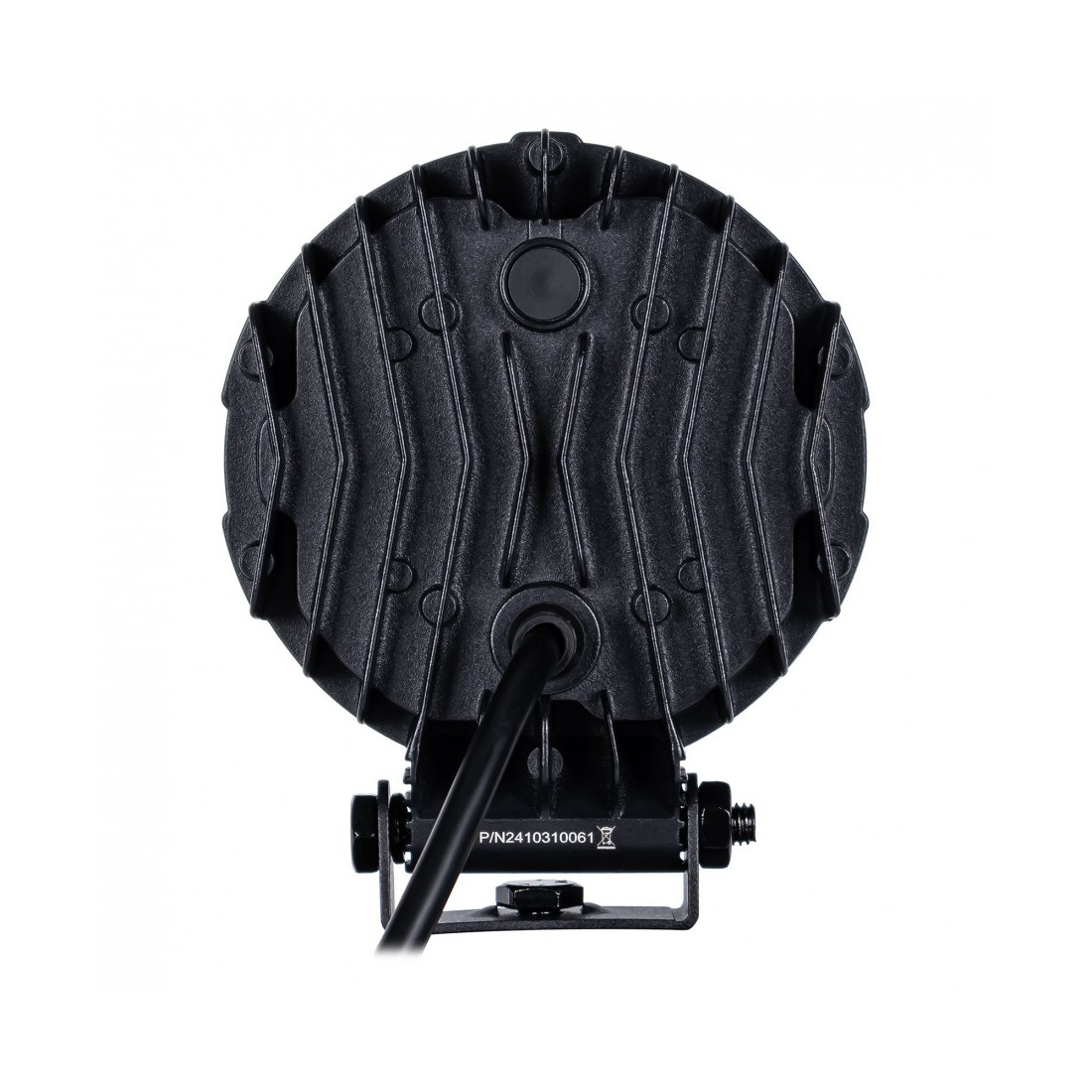

X-SPIDER 3 L0196 work lamp

CODE: L0196

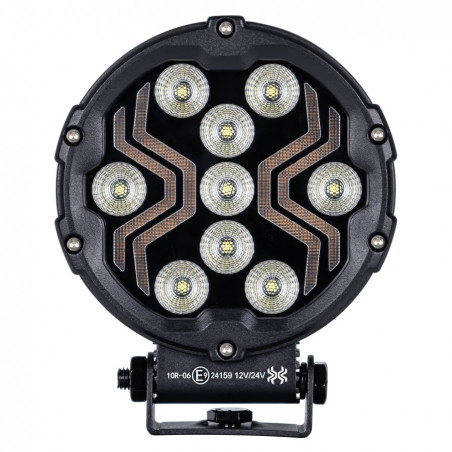

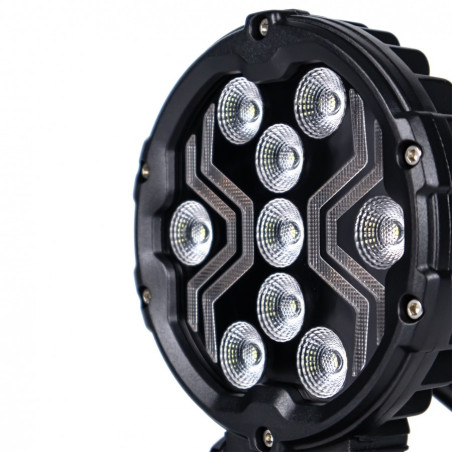

The X SPIDER 3 L0196 LED work lamp is a high-quality product for professionals, ensuring high quality and durability. The lamp features a minimal power consumption of 18W while providing an excellent lighting effect (9 LEDs). This product is suitable for the harshest conditions. The use of materials such as aluminum and polycarbonate ensures long-lasting use of the work lamp.

The X SPIDER 3 L0196 LED work lamp is resistant to moisture and dust, as confirmed by the IP67 protection class.

The L0196 has reverse polarity protection, which increases operating safety.

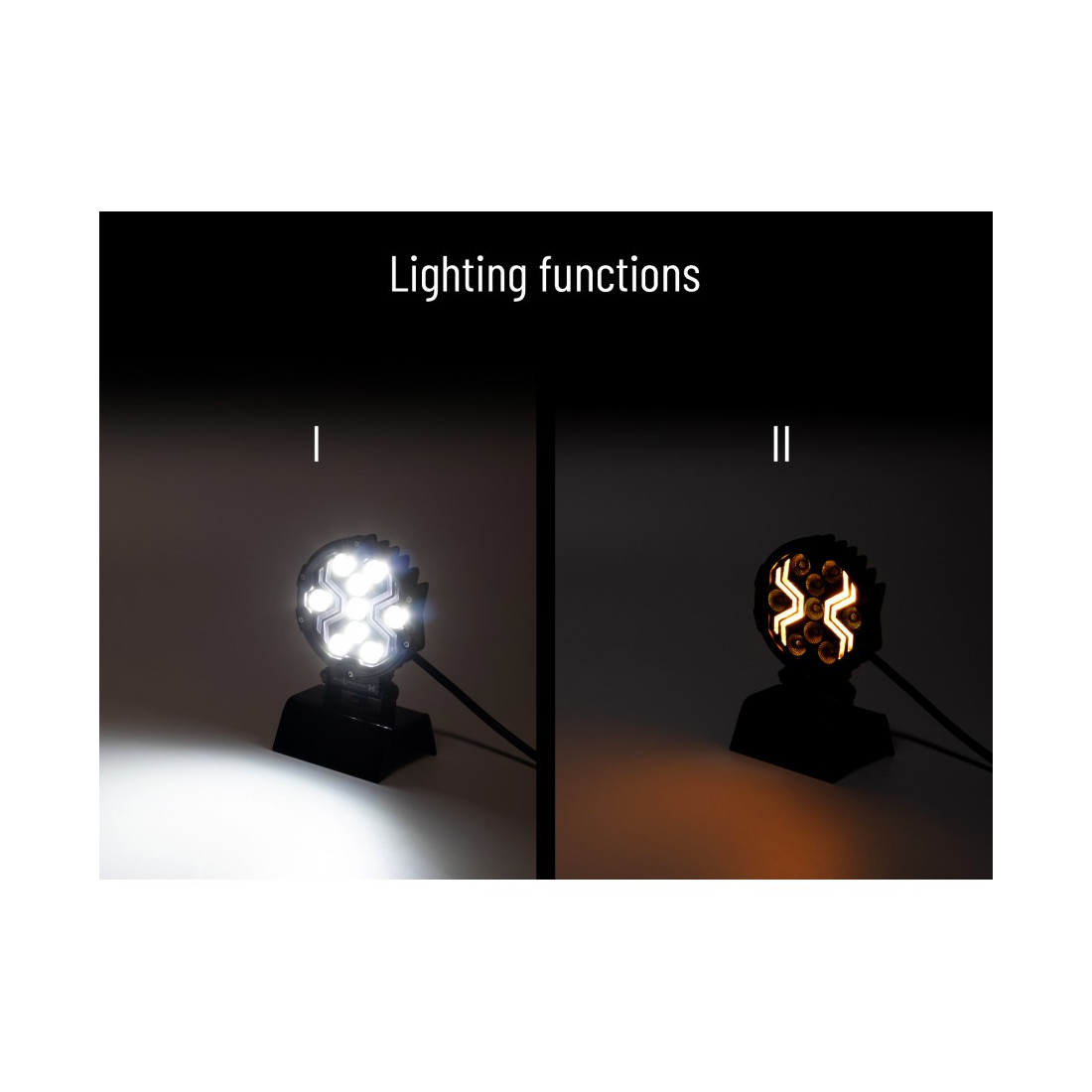

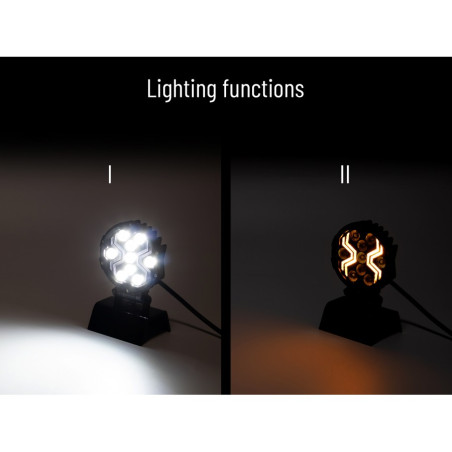

Functions: work light, LED strip

Fastening: screw

Technical data:

Power: 18 W

Voltage: 12/24 V

Diodes: LED

Number of diodes: 9 pcs.

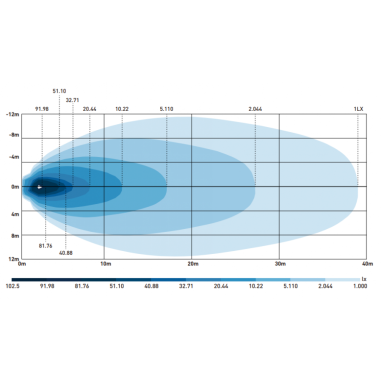

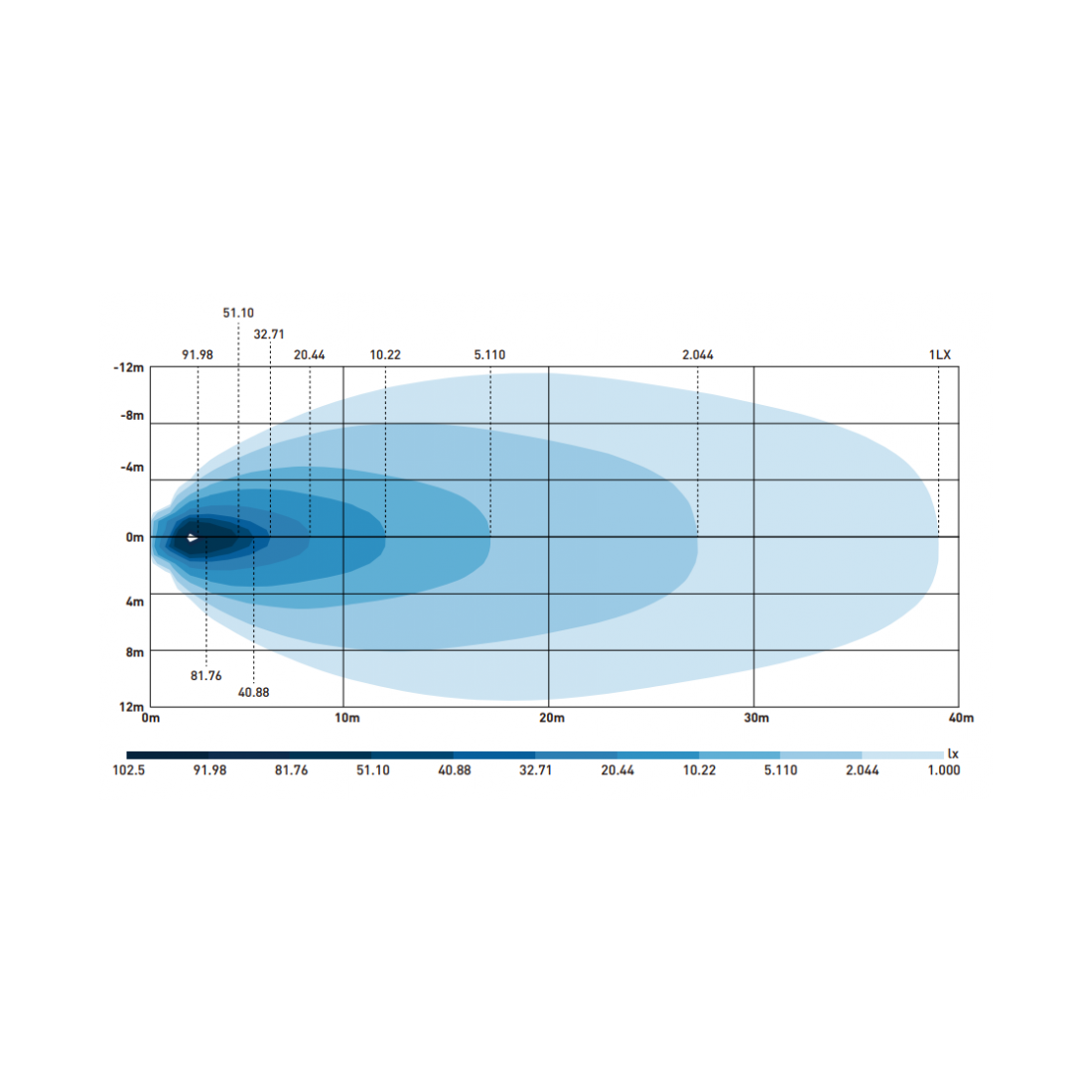

Number of lumens (real): 1700

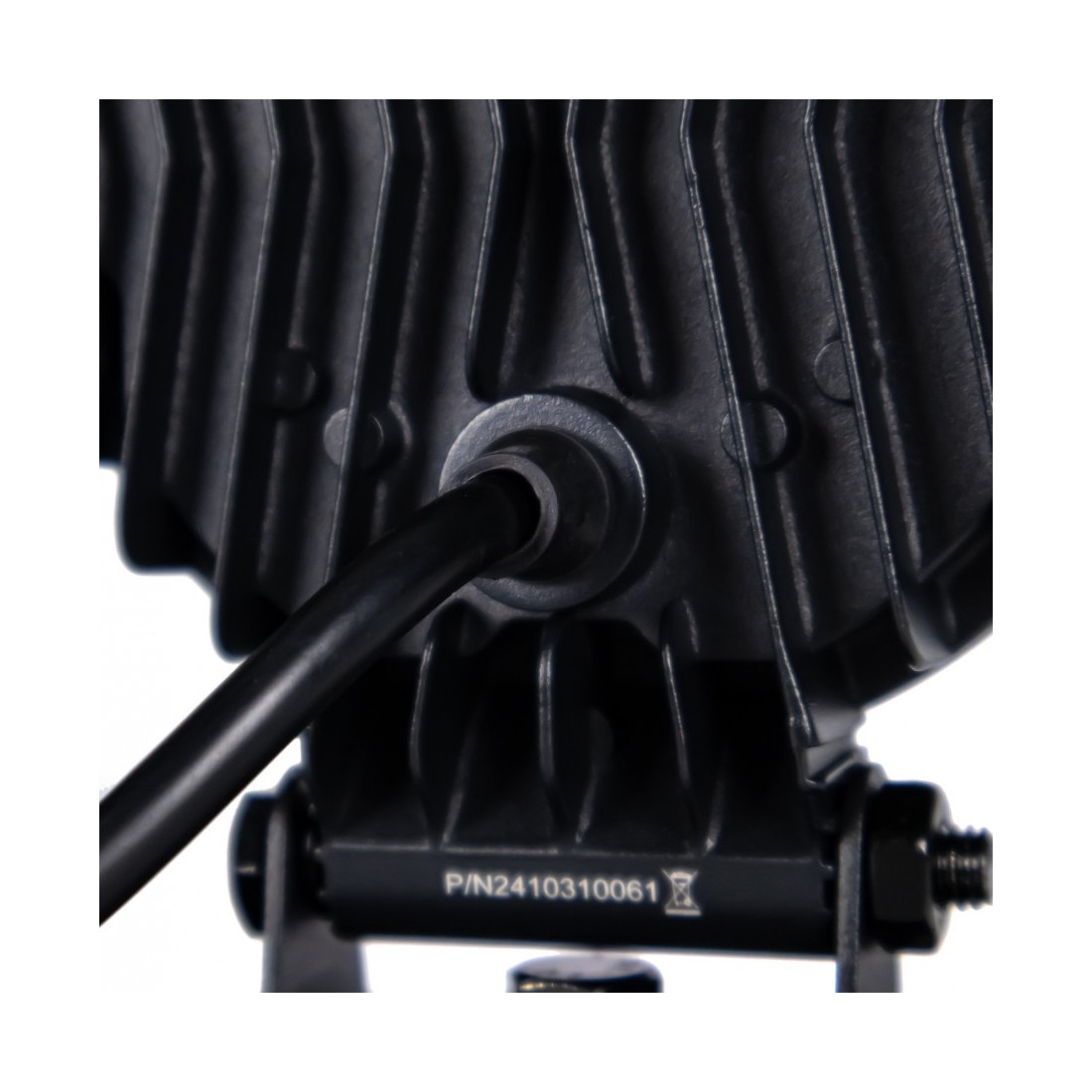

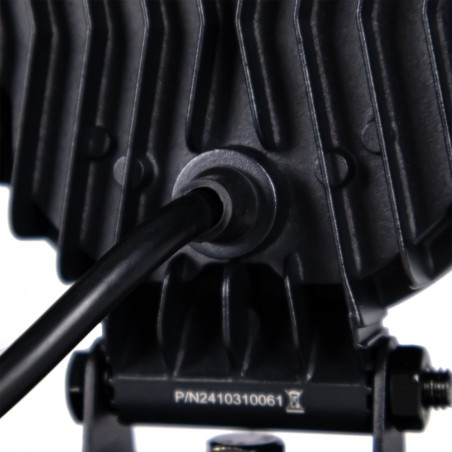

Cable: 300 mm

Fastening: screw

Housing: aluminum

Shade: polycarbonate

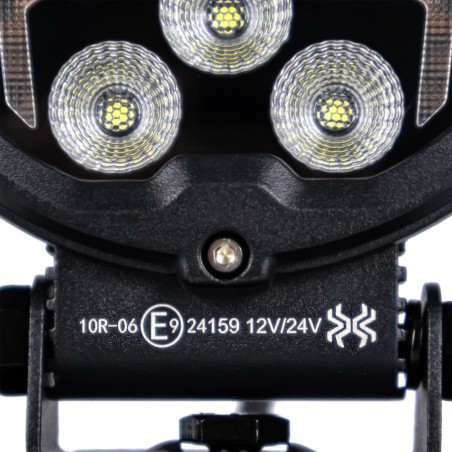

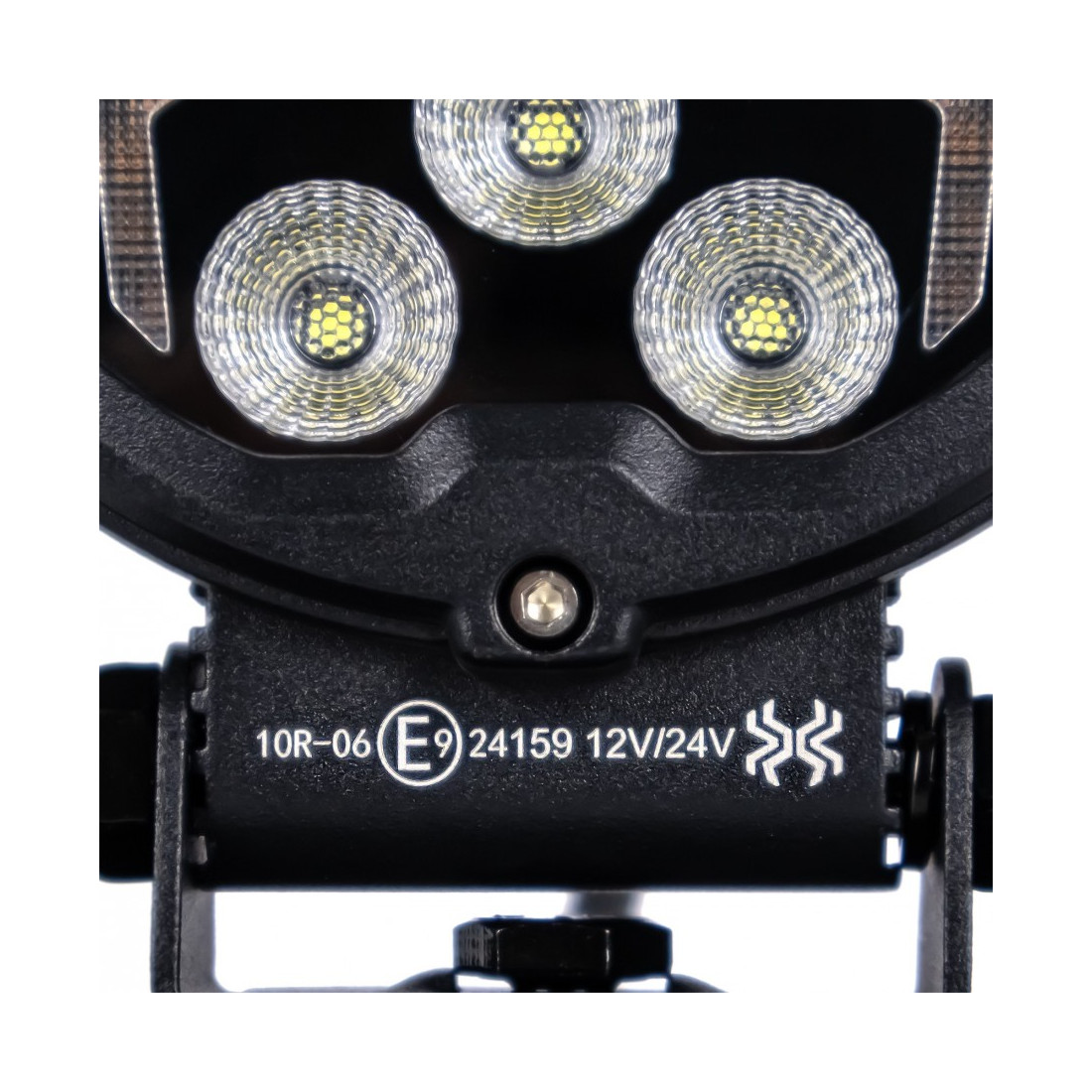

Approvals: ECE R10 and IP67

Operating temperature: -40°C to +60°C

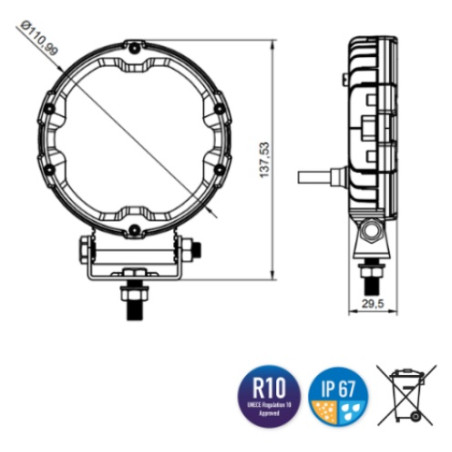

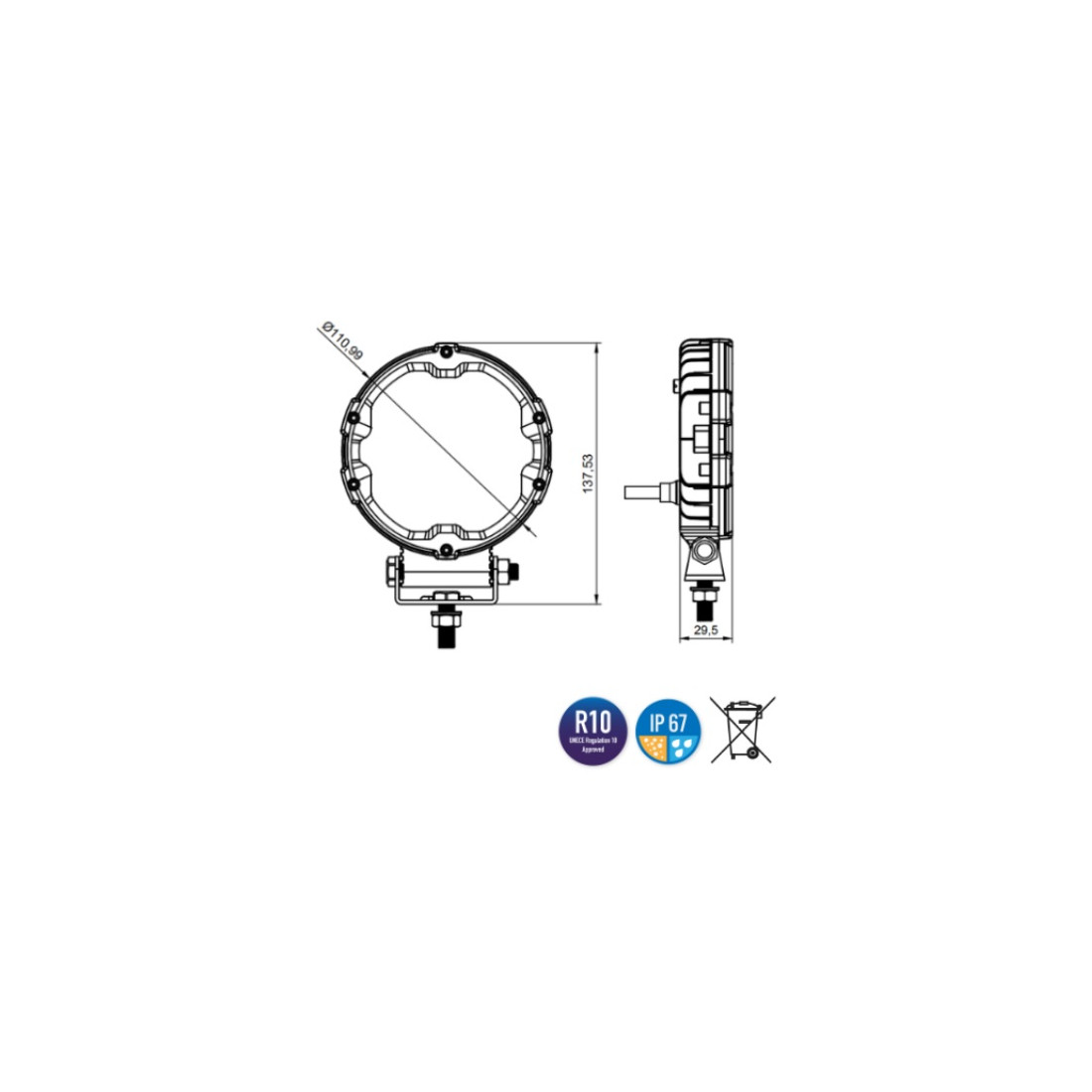

Package dimensions: 119 mm x 65 mm x 148 mm

The product has all the elements necessary for assembly

Warnings to the user:

- Do not shine the light beam towards the eyes - it may cause injury or even loss of vision.

- Installation only in specialized workshops or professional services.

- Use in airy places.

- Use as intended.

Assembly instructions:

- Use only as intended.

- Installation only in specialized workshops.

- The lamp's connection to the vehicle's wiring must be insulated with heat shrink tubing or possibly electrical tape to prevent water and moisture from entering the lamp's copper wire, which could damage the electrical system. For lamps with a plug, ensure the plug is securely connected.

- Do not cut tinned wire ends.

- Lamps must be installed only in accordance with UNECE regulations.
