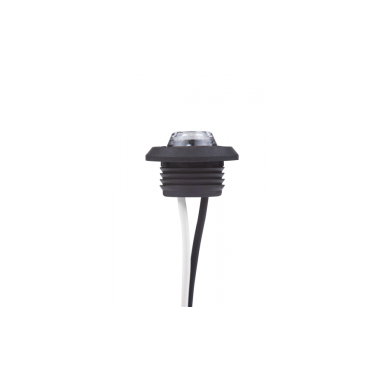

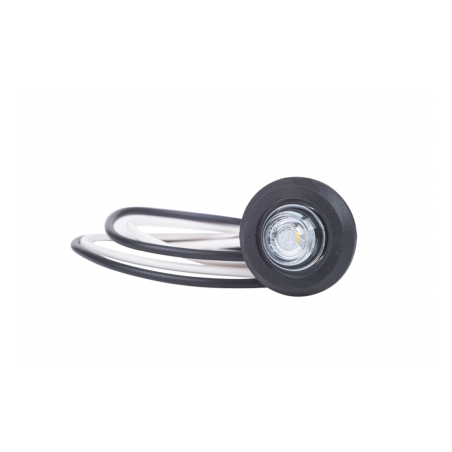

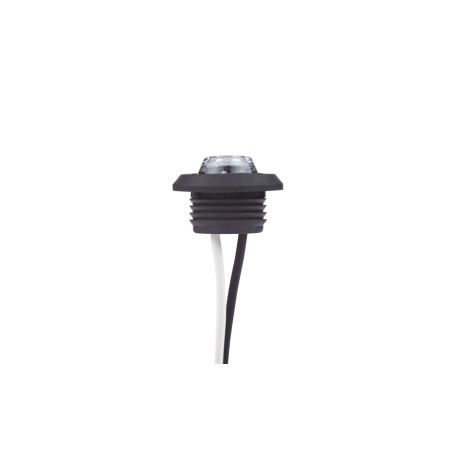

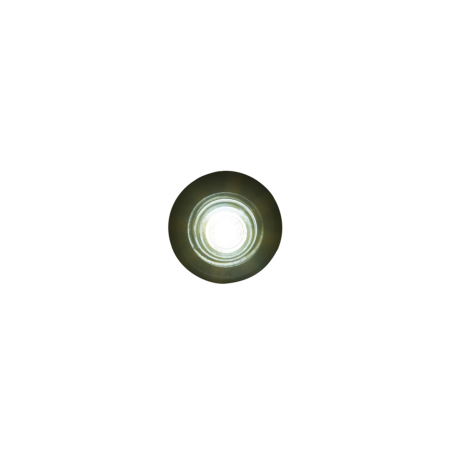

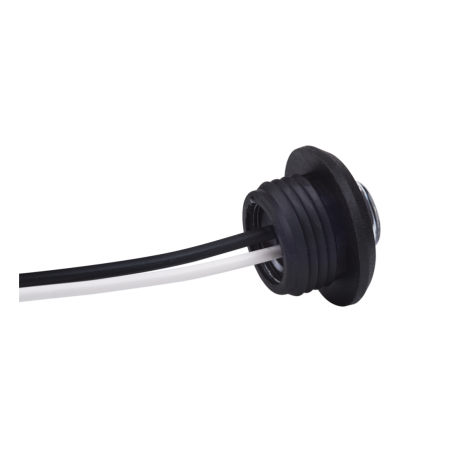

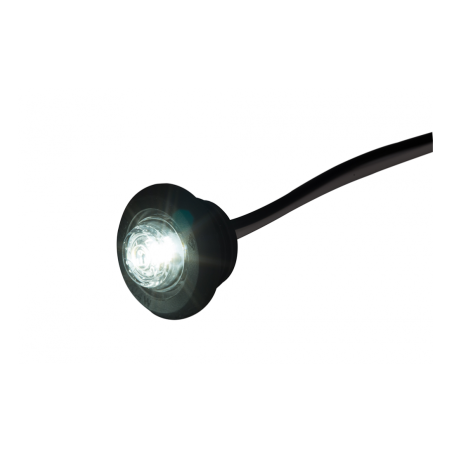

Front position lamp LD 2628

CODE: LD 2628

Front position lamp.

Category: A

Lamp type: LED

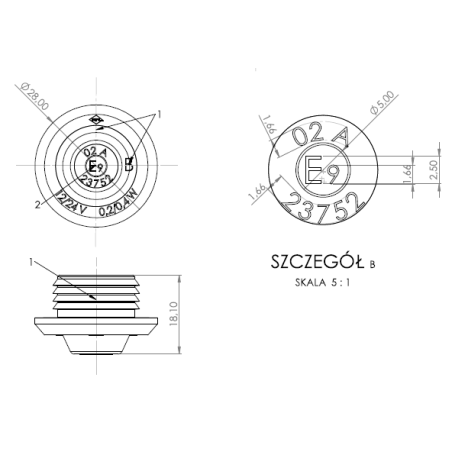

Important information. Specified polarity: black wire (+), white wire (-). Lamp assembly to the vehicle body by pressing into a hole with a diameter of Φ19.


TECHNICAL DATA SHEET
LED light     yes
Lamp category     marker
Type     HOR 109
Connection method     two single electric wires
Side     universal
Supply voltage     12/24V
Power rating     0,2/0,4W
Cable     2x1x0,75 mm2
Ingress protection rating     IP 68
LED quantity     1
Front position light     yes
Operating temperature range     from -30°C to 50°C
Light colour     white
