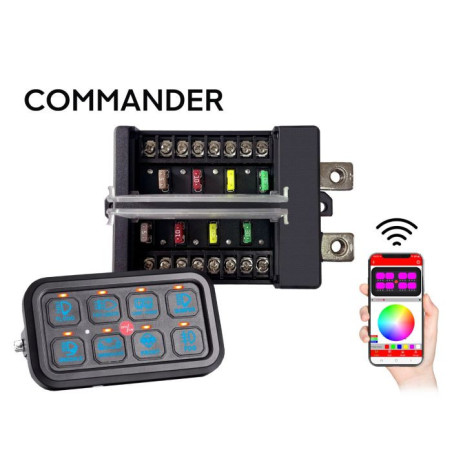

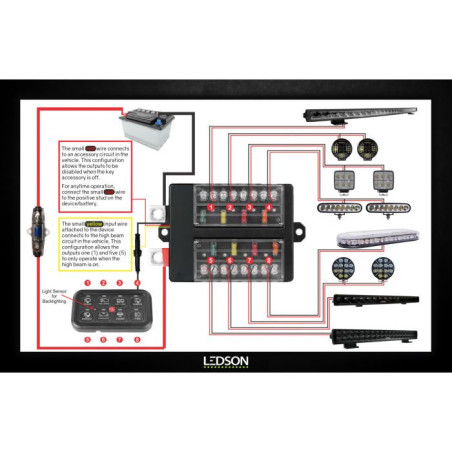

Ledson Commander Bluetooth remote controlled relay box

CODE: 90914T

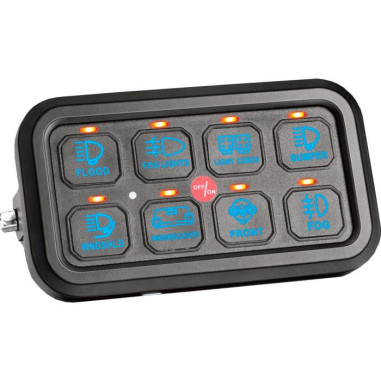

Ledson Commander lets you switch on and off LED bars, auxiliary lights, work lights, etc. and turn on and off other devices at the touch of a button! Programmable control panel with 8 individual outputs, controls up to 8 units separately or together. A control with RGB selectable backlight included (with 2.5 meter cable) but you can also use a free app for Android or Apple.

12V / 24V with MosFet / electronic relays, direct input for high beam signal (halogen). There is also app support for control via Bluetooth (Android and Apple).

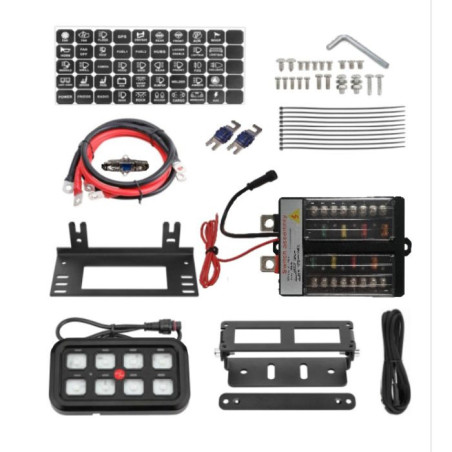

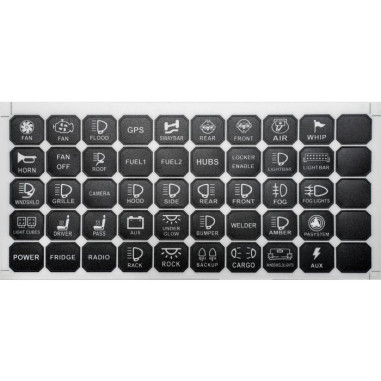

Included: Relay box with remote control, battery wiring, fuses, 50 different symbols / stickers to attach to the remote control, bracket with screws for relay box and remote control, assembly instructions.

More information:

1. Max total current: 60A (720W at 12V).

2. 8 individually programmable switches.

3. The maximum total current of this device is 60A.

4. Maximum current per output at 12V:

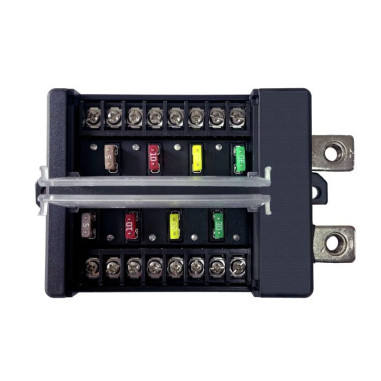

- Output fuses 1 and 5 is 30A - activated when yellow cable receives power

- Output fuses 2 and 6 is 20A

- Output fuses 3 and 7 is 10A

- Output fuses 4 and 8 is 5A

- If the output has been overloaded, a red LED will indicate next to the blown fuse

5. The maximum power of an output should not be more than 300W (25A @ 12V)

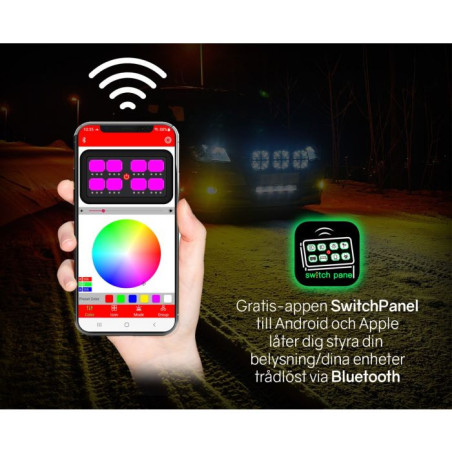

6. Built-in Bluetooth for app control.

7. Protection against overheating, overload, short circuit, polarity protection.

8. Direct high beam control to circuit 1 and circuit 5.

9. Programmable icons.

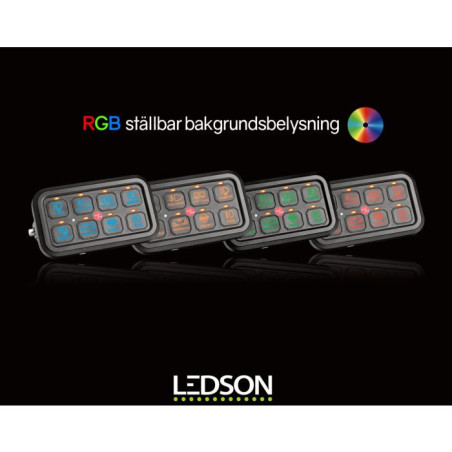

10. Backlit switches with selectable backlight color.

11. LED indication for overload/broken fuse.

12. Each switch can be programmed for three different functions:

- Switch between On/Off

- Switch between On/Off as long as the button is pressed

- Strobe function
