LEDSON EPIX9+ 9" Auxiliary Lamp (Powerboost) - White Body

Code: 91817T, 33491251

EPIX9+ 9" auxiliary lamp (Powerboost) - white body version.

Epix9+ by Ledson is an innovative series of auxiliary lights that will take your vehicle to the next level. With Swedish design (developed by Ledson) and exceptional performance, these auxiliary lights give your vehicle a truly unique and exclusive look that will definitely attract attention! Experience exceptional brightness and design in perfect harmony.

The Epix9+ dynamically activates the position light with an impressive sweeping motion that elegantly directs the light from one side of the auxiliary light to the other before illuminating completely. This effect gives you and your vehicle a distinct and unique character.

The Epix9 is equipped with Ledson Powerboost, an additional power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the output of your auxiliary light to your needs. With the new generation of Ledson Powerboost, you can seamlessly switch modes using the high beam flash in just a few simple steps. Please note: Your auxiliary light is delivered in E-approved mode. Follow the instructions to activate Powerboost mode.

Features and specifications:

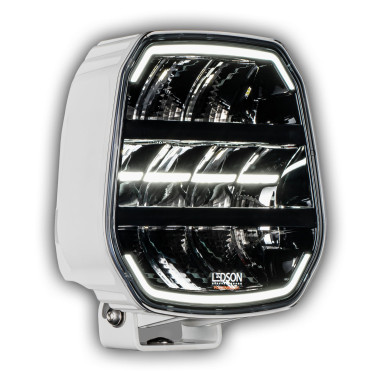

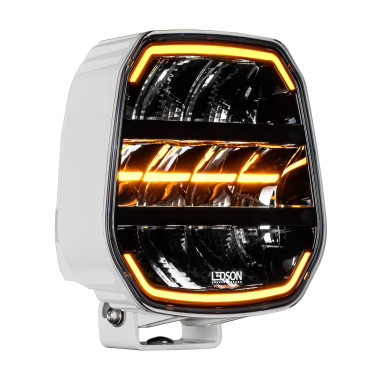

• Possibility to choose a position light with dynamic activation (yellow-orange or white xenon, combine the selected color)
• E-mode range: 359 m (1 lux)
• Powerboost range: 773 m (1 lux)
• High beam system with 20° light distribution
• E-marking: ECE R112 (Ref. 30), R7 (white position light)
• EMC certificate: ECE R10 (does not interfere with radio operation)
• 15,000 lumens (theoretical), 11,000 lumens (actual)
• Neutral white light: 5000K
• ETM (Electronic Thermal Management): adjusts diode power based on temperature, ensuring optimal lifespan
• Side reflecting optical system
• Pressure equalizing membrane

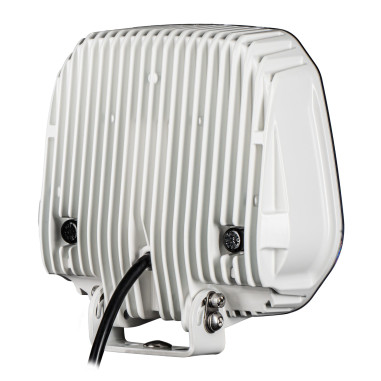

• Aluminum radiator

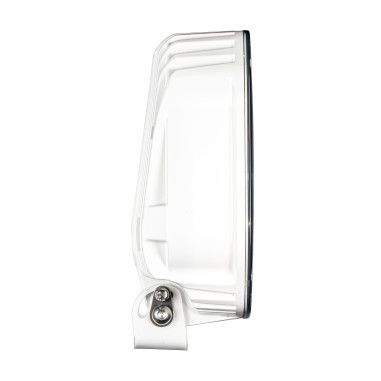

• Adjustable stainless steel mount
• Polycarbonate lens
• 36 month warranty
• 180 W (4 x 20 W Cree diode + 4 x 10 W Cree diode)
• Nominal power: 154 W (Powerboost)
• IP69K (water and dust resistant)
• Cable with 4-pin DT connector
• Voltage: 9-36V
• Load in E mode: 1.5 A at 12 V and 0.7 A at 24 V (high beam only, no position light)
• Powerboost load high beam: 12.6 A at 12 V and 5.6 A at 24 V (high beam only, no position light)

Dimensions and weight:

• Width: 225mm
• Height: 223 mm (with bracket)
• Depth: 86mm
• Weight: 2.23 kg

Included:

• One Ledson Epix9+ LED 9" auxiliary lamp
• Mounting bracket, screws and bolts for single or double mounting points
• DT connector (4 pin)
• Installation instructions

Cable instructions:

• Red: additional light (+)
• Black: Additional light/position light (-ground)
• White: Position light (+) White light
• Yellow: Position light (+) Yellow-orange light

Note: Do not cut the DT connector as this increases the risk of moisture damage and will void the warranty.
