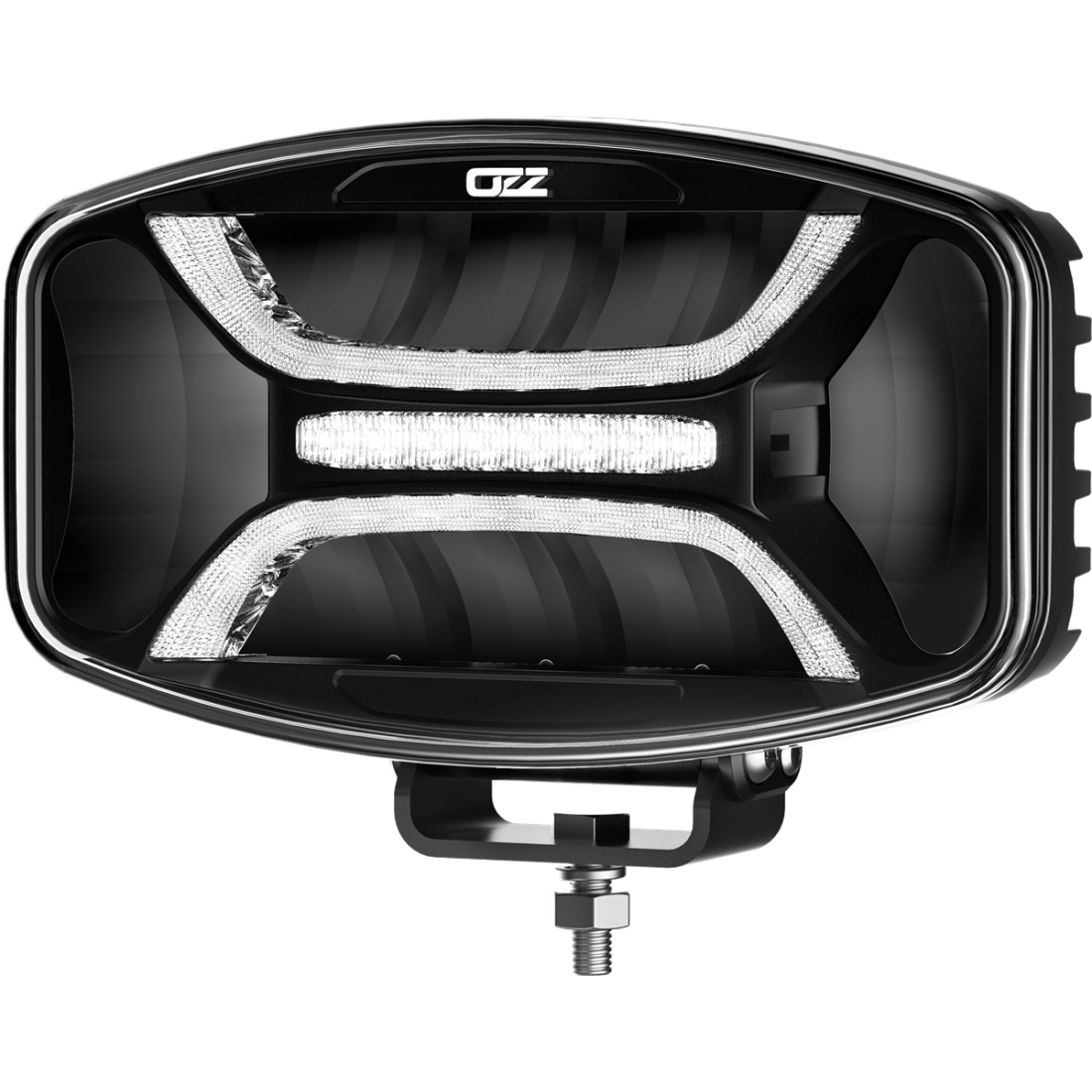

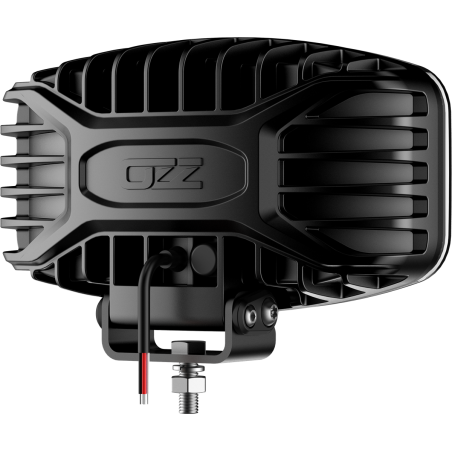

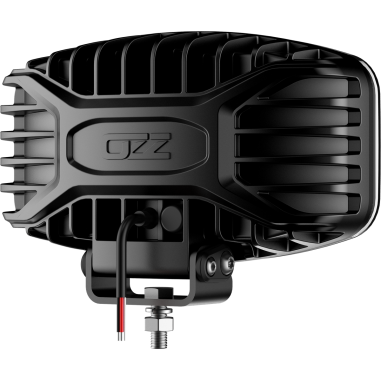

SET: 6x OZZ X01 P DUAL COLOR HALOGEN LONG-RANGE LED

CODE: 92027T

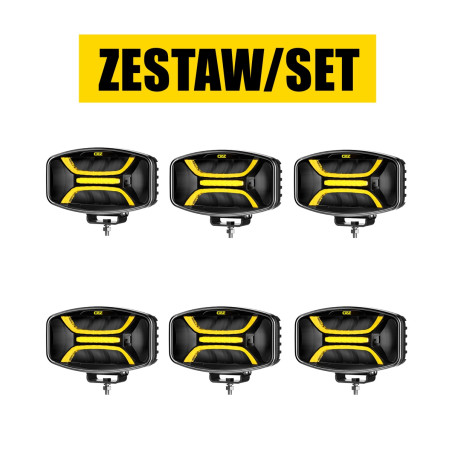

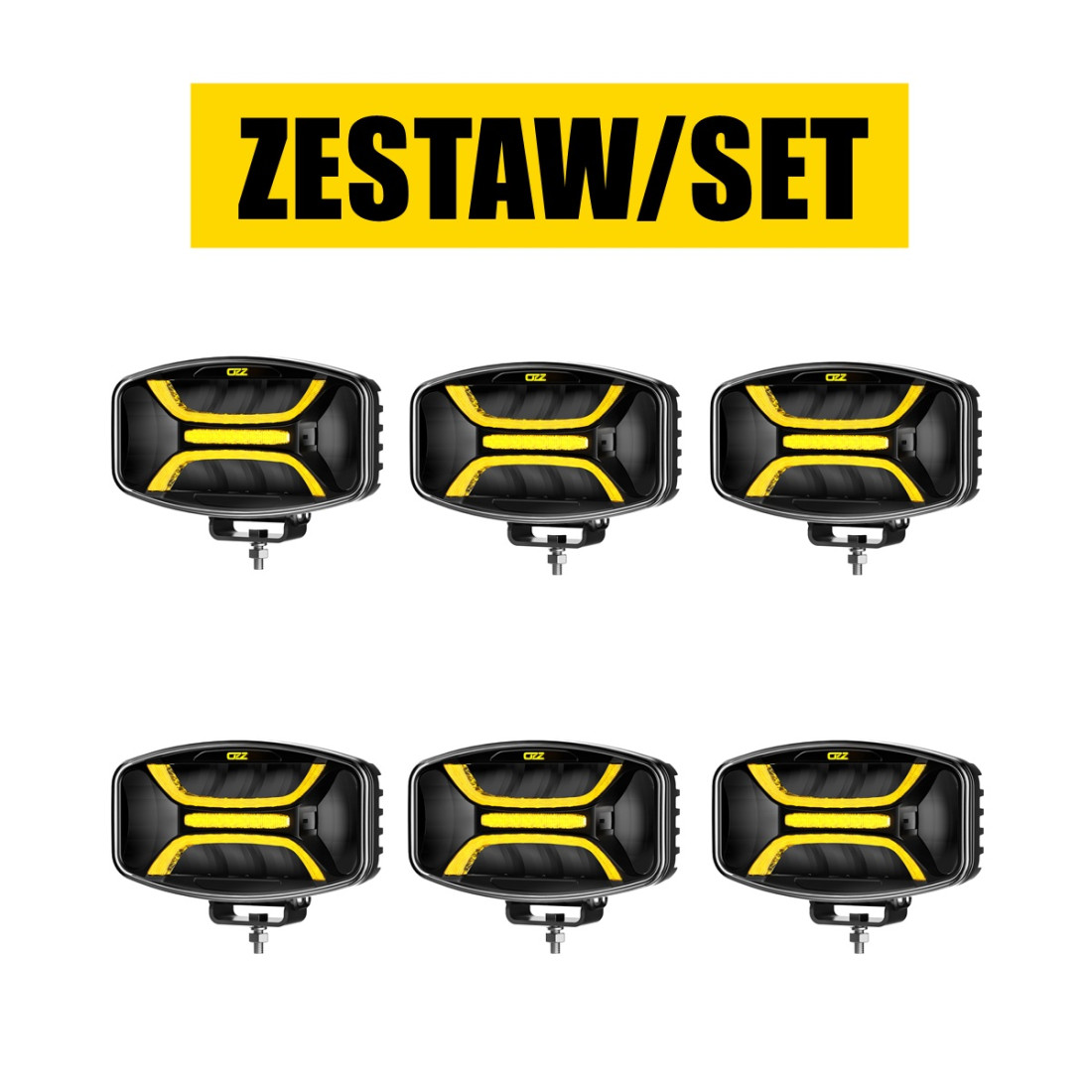

Set of 6x OZZ X01 P DUAL COLOR lamp (88105).

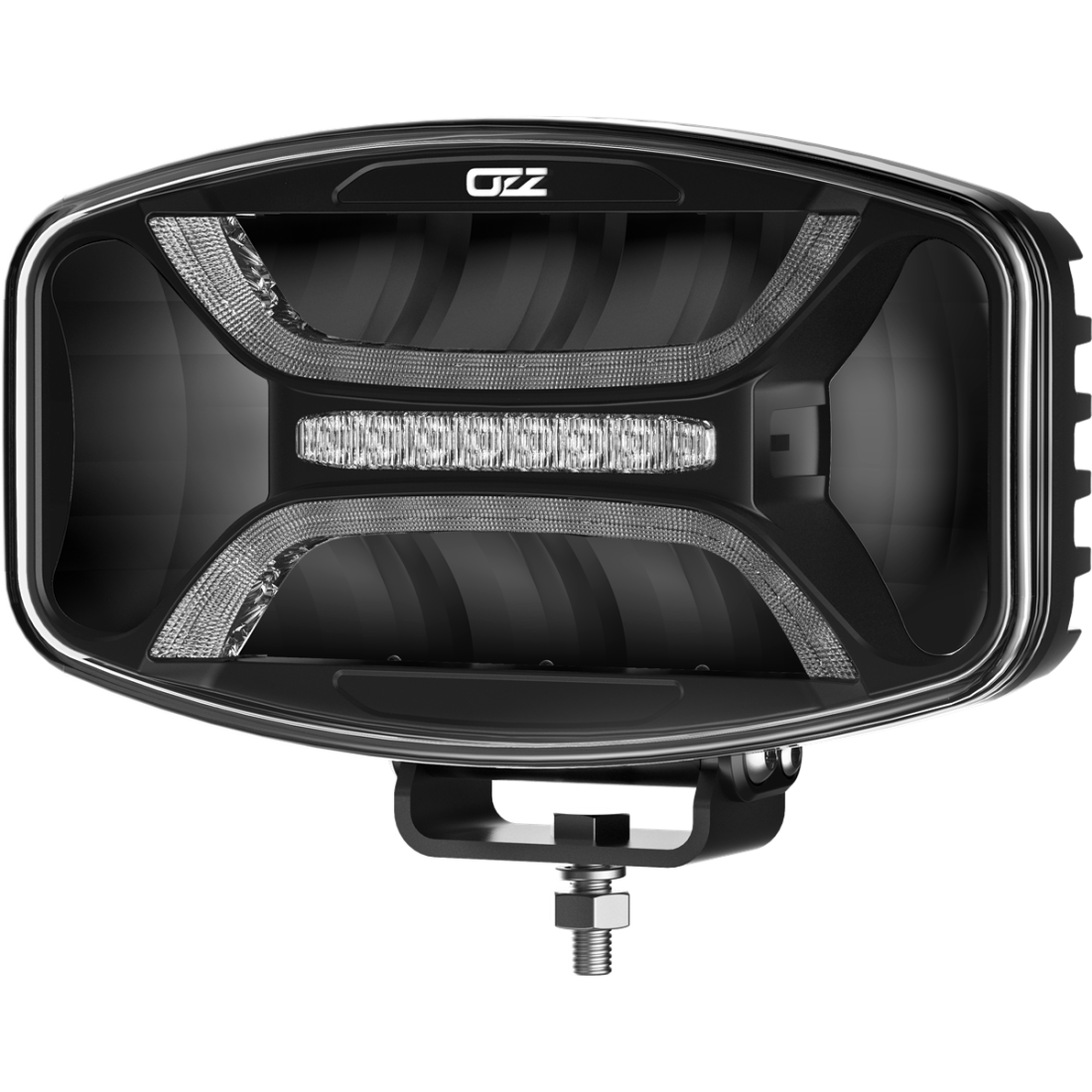

LED road lamp by OZZ equipped with a dynamic position light in white and orange, activated during starting, providing an incredible visual effect.

Each lamp comes with a protective cover.

Lamp type: LED

Diodes: 8 pcs., Osram

Voltage: 10-35V DC

Actual 12V effect (W): 95 W

Actual 24V effect (W): 95W

Rated current 12V (A): 7.2 A

Rated current 24V (A): 3.6A

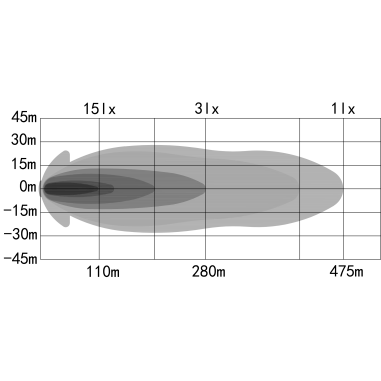

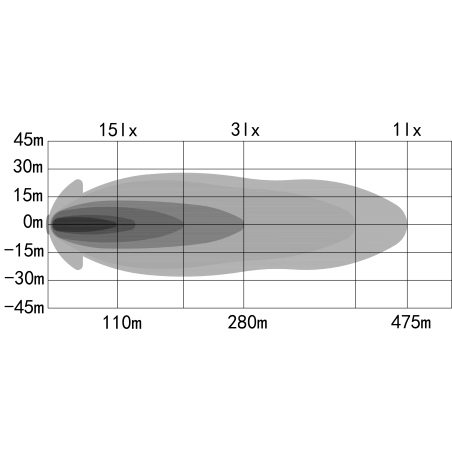

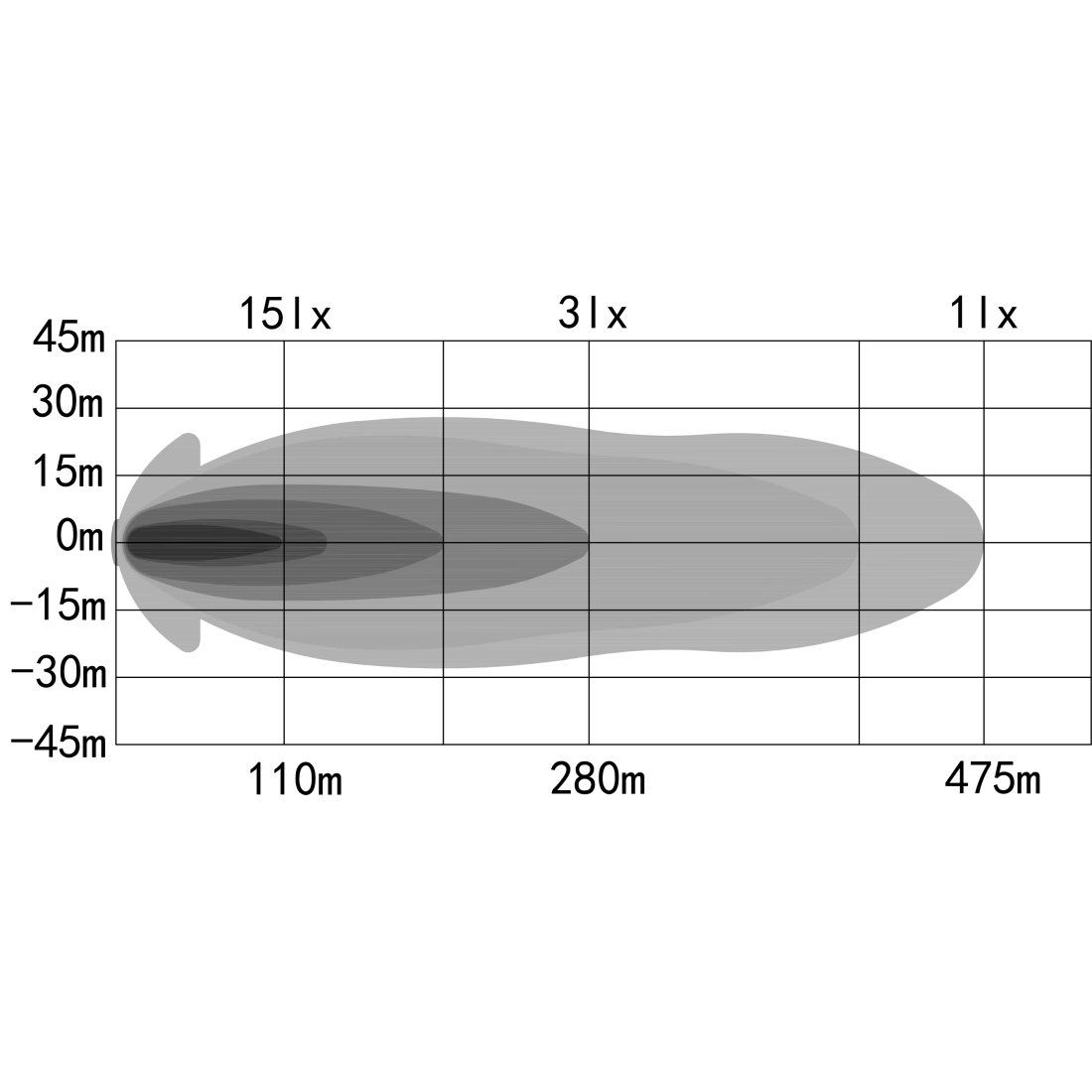

Theoretical luminous flux: 8,160 lm

Actual luminous flux: 5,100 lm

1 lux @: 475 m

Kelvin: 5000 K

IP class: IP67

Harness arrangement: driving + R65

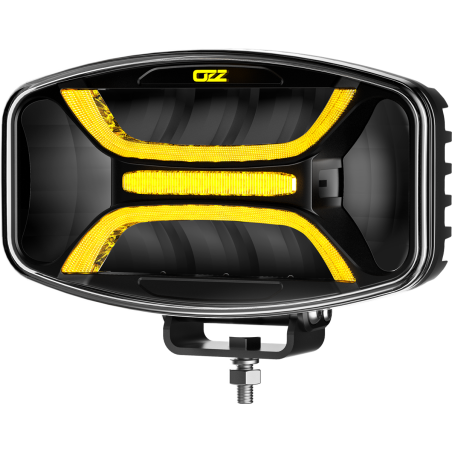

Position light: dynamic white and amber

Connection: DT male + female

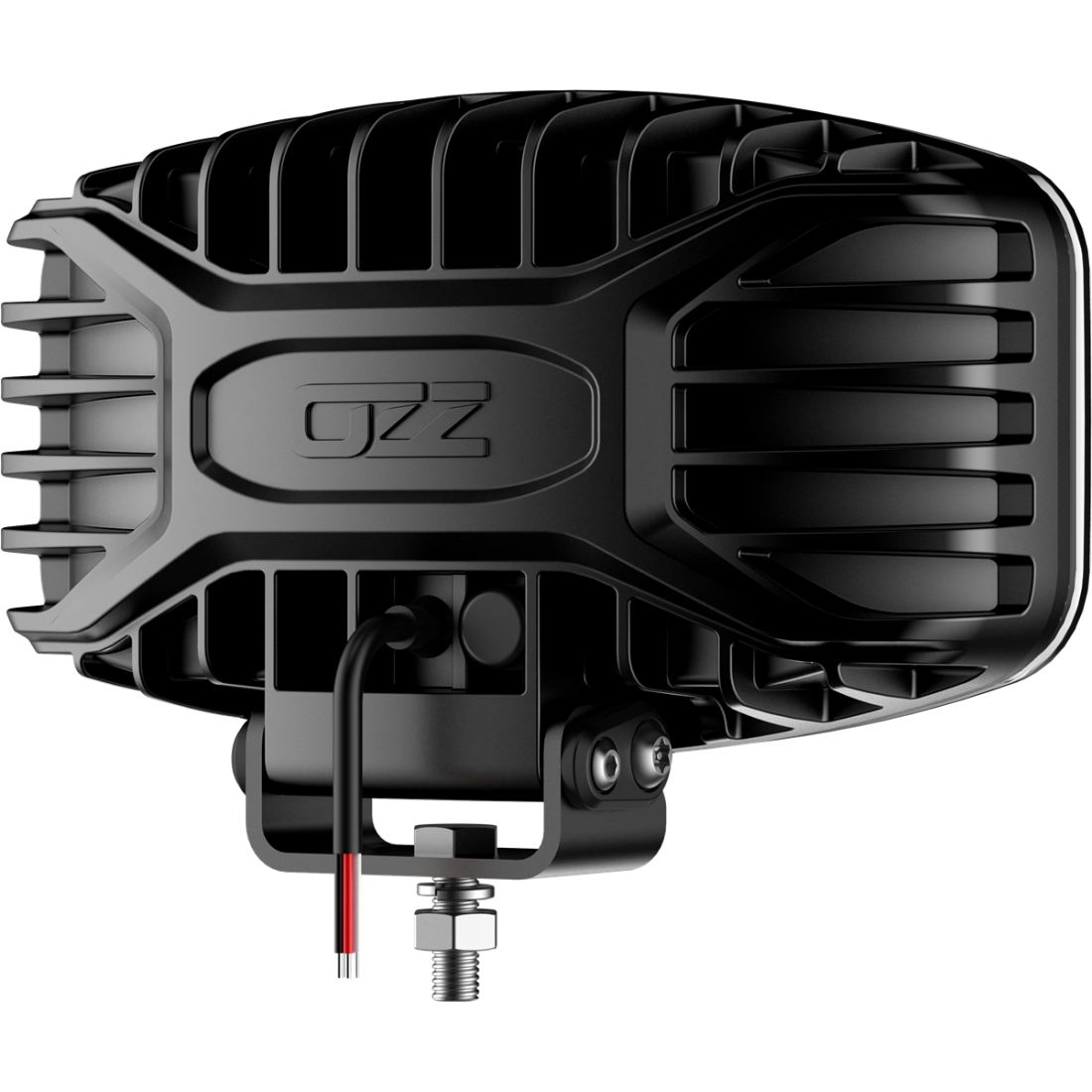

Housing and lens material: aluminum, polycarbonate

Diameter: 245 x 90 x 140 mm

Operating temperature: -40°C–+60°C

In accordance with regulations: R112, R7, R65, R10

Electromagnetic compatibility: ECE R10

Ref. No.: 50

Weight: 1.95 kg

Warranty: 3 years

Lens cover included
