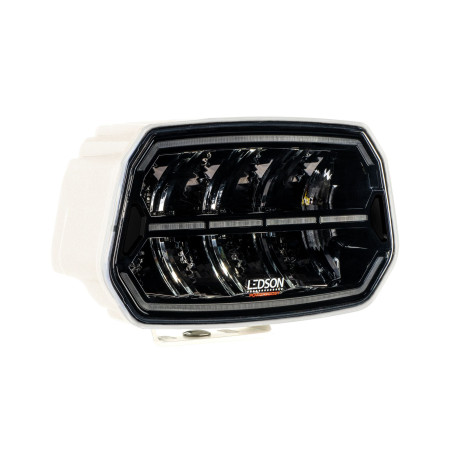

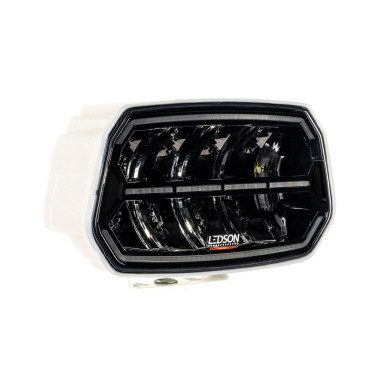

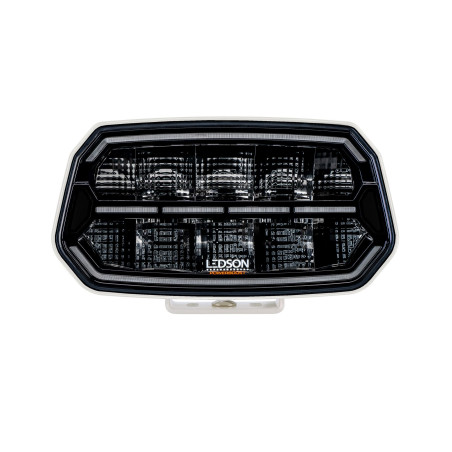

LEDSON EPIX10+ WHITE BODY Auxiliary lamp 10" (Powerboost)

Code: 91823T, 33491261

EPIX10+ Auxiliary Light 10" (Powerboost)- model with white body.

Ledson developed Swedish design

Epix10+ from Ledson is an innovative series of auxiliary lights that elevate your vehicle to the next level. With a Swedish design (developed in-house by Ledson) and outstanding performance, these auxiliary lights give your vehicle a truly unique and exclusive look that’s guaranteed to attract attention! Experience exceptional brightness and design in perfect harmony.

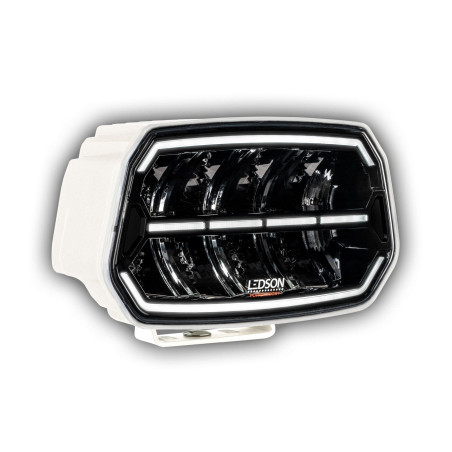

Dynamic Position Light

Epix10+ activates its position light dynamically, with an impressive sweeping motion that elegantly guides the light from one side of the auxiliary light to the other before fully illuminating. This effect gives you and your vehicle a distinct and unique signature.

Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This

Epix10 comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash in just a few easy steps, as shown here. Note: Your auxiliary light is delivered in E-approved mode. Please follow the instructions to activate Powerboost mode.

Features and technical specifications:

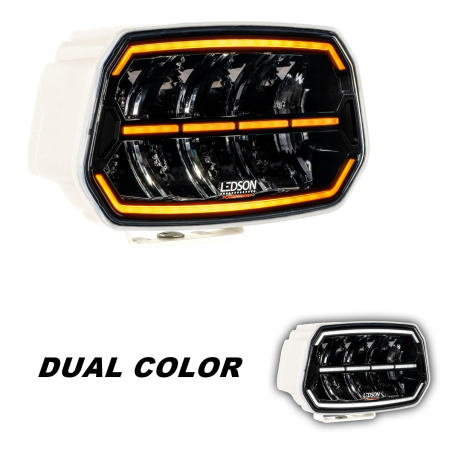

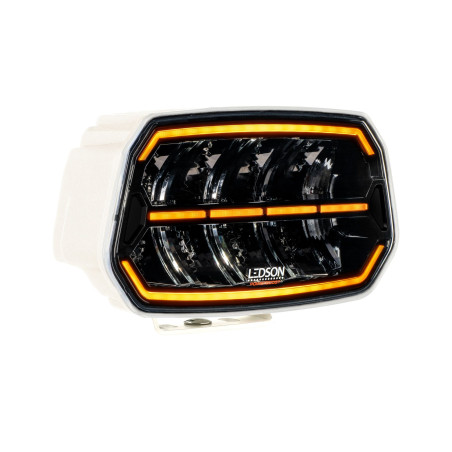

• Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)
• Range in E-approved mode: 359 m (1 lux)
• Range in Powerboost mode: 647 m (1 lux)
• Driving beam pattern: Enhances the vehicle's standard high beam pattern
• E-marked: ECE R112 (Ref. 30), R7 (White position light) - Read more about UNECE regulations here
• EMC certified: ECE R10 (does not interfere with radio)
• 11500 lumens (theoretical), 8200 lumens (actual)
• Neutral white light: 5000K
• ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
• Side-reflecting optical system
• Pressure equalization membrane
• Aluminum heat sink
• Adjustable stainless steel mount
• Polycarbonate lens
• 36-month warranty




Technical data:

• 150W (10 x 15W Cree LED)
• Nominal Power: 150W (Powerboost)
• IP69K (water and dust proof)
• Cable with 4-pin DT Connector
• Voltage: 9-36 V
• Load in E-Approved Mode: 2,2A @ 12V and 1,1A @ 24V (high beam only, no position light)
• Load in High Beam Powerboost Mode: 10,6A @ 12V and 4,8A @ 24V (high beam only, no position light)

Dimensions & Weight:

• Width: 247 mm
• Height: 145 mm (incl bracket)
• Depth: 86 mm
• Weight: 1,6 kg

Included:

• One Ledson Epix10+ LED auxiliary light 10"
• Mounting bracket, bolts, and screws for single or dual mounting points
• DT Connector (4-pin)
• Installation instructions

Cable instructions:

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- Ground)
• White: Position light (+) White light
• Yellow: Position light (+) Yellow-orange light




Other:

• E-mark: R7, ECE R10, ECE R112
• Manufacturer: Ledson

Note: The DT connector must not be cut, as this increases the risk of moisture damage and will void the warranty.
